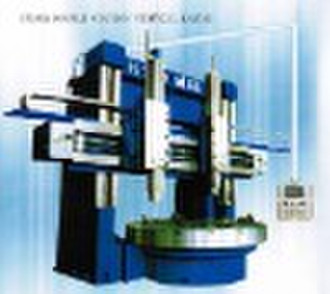

CQ5250 double column vertical lathe

1.Model CQ5250 single-column vertical lathe is suitable for machining of all kinds of industries. It can make rough and finish turning of external cylindrical surface, circular conical surface, head face, grooving, severance, etc.2.working table adopts hydrostatic guide way. The spindle is to use NN30 (Grade D) bearing and able to turn precisely, with good carrying capacity.3.Gear case is to use 40 Cr gear wheel of gear grinding. It has high precision and little noise. Both hydraulic parts and electrical equipment use famous-brand products domestic.4.Plastic coated guide ways are wearable. Centralized lubricating oil supplying is convenient. 5.Castings of lathe are to use lost foam foundry( short for LFF) technique. Castings are wearable with good quality and dealt by aging.The specifications of Model CQ5250 are as bellow: specifications unit C5250Q Max. turning diameter Mm 5000 Working table diameter Mm 4000 Max. weight of work-piece T 32 Max. height of work-piece mm 2500 Speed range of working table Rpm 2-62 Steps 16 Horizontal travel of tool post Mm 2765 Vertical travel of tool post Mm 1250 Power of main motor Kw 75 Weight(approx) Kg 75000 Overall dimensions(L×W×H) Mm 9350×6400×7200
